Home > Carbon Steel > Carbon Steel A671 Grade CC60 Pipes

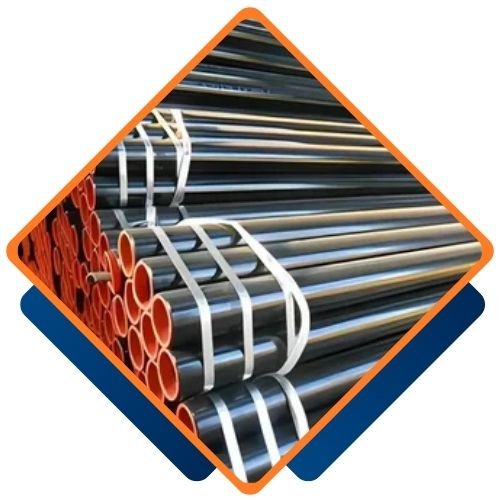

Bulan Pipes and Tubes, based in Jakarta, Indonesia, has earned a solid reputation as a reliable manufacturer and supplier of Carbon Steel A671 Grade CC60 Pipes. These pipes are perfect for low-temperature applications and can handle moderate to high pressure. Crafted from carbon steel plates that adhere to strict ASTM A671 standards, these electric fusion welded (EFW) pipes are known for their durability, structural integrity, and excellent weld quality. Commonly found in refineries, power plants, petrochemical facilities, and process piping systems, Bulan is committed to precision manufacturing, timely delivery, and meeting international standards, making their pipes ideal for critical infrastructure and industrial needs.
ASTM A671 Grade CC60 Pipes are made from killed carbon steel plates, showcasing impressive mechanical and chemical properties. Their typical composition includes carbon (≤0.30%), manganese (0.50–1.35%), phosphorus (≤0.035%), and sulfur (≤0.035%). These pipes boast a minimum tensile strength of 415 MPa and a yield strength of 240 MPa, along with good ductility and impact resistance. Depending on the service requirements, heat treatment methods like normalizing or quenching and tempering may be applied. The EFW welding process further enhances the pipes’ strength and performance, especially under varying pressure and temperature conditions.
|
Wall Thickness |
Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
|
Coating |
Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
|
Specification |
ASTM A671 /ASME SA671 |
|
Other Testing |
NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
|
Class Designation |
CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42 |
|
Packaging |
Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
|
Shipment & Transportation |
By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes |
|
Length |
5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
|
Ends |
Plain Ends / Beveled Ends / Coupling |
|
Delivery Conditions |
As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered – BR / N / Q /T |
|
Outer Diameter Size |
16″ NB To 100″ NB (Nominal Bore Size) |
| Material | A516 Gr 60 |
|
Dimension |
All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
|
Value Added Services |
Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Standards | CC60, JIS JPI-SLA24B (3) |
|
Type |
EFW (ELECTRIC FUSION WELDED PIPES) |
|
Material Test Certificate |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Specification | Steel grade | Chemical composition | Remarks | |||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ti | |||
| Pipes for pressure service ASTM A671 | -/A45 | -/0.17 | – | 0.98 | 0.035 | 0.035 | – | A671/ A672 |
| -/A50 | -/0.22 | – | ||||||
| CA55/A55 | 0.28 | – | ||||||
| -/B55 | -/0.20 | 0.13 ~0.45 | ||||||
| CB60/B60 | 0.24 | |||||||
| CB65/B65 | 0.28 | |||||||
| CB70/C70 | 0.31 | 1.30 | ||||||
| -/C55 | -/0.18 | 0.55 ~0.98 | ||||||
| CC60/C60 | 0.21 | |||||||
| CC65/C65 | 0.24 | 0.79 ~1.30 | ||||||
| CC70/C70 | 0.27 | |||||||
| Products | Steel Grade | BASE METAL MECHANICAL COMPOSITION | Welding point tensile strength (N/mm2) | Remarks | |||
|---|---|---|---|---|---|---|---|
| Yield point (N/mm2) | Tensile Stregth (N/mm2) | Test Pieces | Elongation (%) | ||||
| Pipes for pressure service ASTM A671 | -/A45 | -/165 | -/310~450 | – | -/30 | -/310~450 | A671/ A672 |
| -/A50 | -/185 | -/345~485 | -/28 | -/345~485 | |||
| CA55/A55 | 205 | 380~515 | 27 | 380~515 | |||
| -/B55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CB60/B60 | 220 | 415~550 | 25 | 415~550 | |||
| CB65/B65 | 240 | 450~585 | 23 | 450~585 | |||
| CB70/B70 | 260 | 485~620 | 21 | 485~620 | |||
| -/C55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CC60/C60 | 220 | 415~550 | 25 | 415~550 | |||
| CC65/C65 | 240 | 450~585 | 23 | 450~585 | |||
| CC70/C70 | 260 | 485~620 | 21 | 485~620 | |||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel A671 Grade CC60 Pipes from Bulan Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
| NB | Size | OD | 40S | 5S | 10S | S10 | S20 | S40 | S60 | XS/80S | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 1/8” | 10.29 | 1.2 | 1.73 | 2.41 | ||||||||||||
| 1/4” | 13.72 | 1.7 | 2.24 | 3.02 | ||||||||||||
| 3/8” | 17.15 | 1.7 | 2.31 | 3.2 | ||||||||||||
| 15 | 1/2” | 21.34 | 2.8 | 1.7 | 2.1 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | ||||||
| 20 | 3/4” | 26.67 | 2.9 | 1.7 | 2.1 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | ||||||
| 25 | 1” | 33.4 | 3.4 | 1.7 | 2.8 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | ||||||
| 32 | 1 1/4” | 42.16 | 3.6 | 1.7 | 2.8 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | ||||||
| 40 | 1 1/2” | 48.26 | 3.7 | 1.7 | 2.8 | 3.68 | 5.08 | 5.08 | 7.14 | 10.2 | ||||||
| 50 | 2” | 60.33 | 3.9 | 1.7 | 2.8 | 3.91 | 5.54 | 5.54 | 9.74 | 11.1 | ||||||
| 65 | 2 1/2” | 73.03 | 5.2 | 2.1 | 3.1 | 5.16 | 7.01 | 7.01 | 9.53 | 14 | ||||||
| 80 | 3” | 88.9 | 5.5 | 2.1 | 3.1 | 5.49 | 7.62 | 7.62 | 11.1 | 15.2 | ||||||
| 90 | 3 1/2” | 101.6 | 5.7 | 2.1 | 3.1 | 5.74 | 8.08 | 8.08 | ||||||||
| 100 | 4” | 114.3 | 6 | 2.1 | 3.1 | 6.02 | 8.56 | 8.56 | 11.1 | 13.5 | 17.1 | |||||
| 125 | 5” | 141.3 | 6.6 | 2.8 | 3.4 | 6.55 | 9.53 | 9.53 | 12.7 | 15.9 | 19.1 | |||||
| 150 | 6” | 168.3 | 7.1 | 2.8 | 3.4 | 7.11 | 10.97 | 11 | 14.3 | 18.3 | 22 | |||||
| 200 | 8” | 219.1 | 8.2 | 2.8 | 3.8 | 6.4 | 8.18 | 10.3 | 12.7 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 | |
| 250 | 10” | 273.1 | 9.3 | 3.4 | 4.2 | 6.4 | 9.27 | 12.7 | 12.7 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 | |
| 300 | 12” | 323.9 | 9.5 | 4 | 4.6 | 6.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 | |
| 350 | 14” | 355.6 | 9.5 | 4 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | |
| 400 | 16” | 406.4 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | |
| 450 | 18” | 457.2 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | |
| 500 | 20” | 508 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | |
| 550 | 22” | 558.8 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 22.2 | 12.7 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | ||
| 600 | 24” | 609.6 | 9.5 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31 | 38.9 | 46 | 52.4 | 59.5 | |
| 650 | 26” | 660.4 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 700 | 28” | 711.2 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 750 | 30” | 762 | 9.5 | 6.4 | 7.9 | 7.9 | 13 | 12.7 | ||||||||
| 800 | 32” | 812.8 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 850 | 34” | 863.6 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 900 | 36” | 914.4 | 9.5 | 7.9 | 13 | 19.1 | 12.7 |
Bulan Pipes and Tubes is one of the largest Carbon Steel A106 Grade B Pipes suppliers in Indonesia, Jakarta, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel A671 Grade CC60 Pipes to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.
Carbon Steel A671 Grade CC60 Pipes find extensive use in power generation, oil and gas transmission, refinery process lines, and chemical plants, particularly where low-temperature toughness and moderate pressure resistance are essential. They are well-suited for boiler feed lines, heat exchangers, pressure vessels, and steam pipelines. Their strength and weldability make them a great choice for both above-ground and underground piping systems. Additionally, A671 CC60 pipes are favored in cross-country pipeline projects and structural applications in challenging environments. Their cost-effectiveness, combined with excellent performance, makes them a top choice for many industrial applications.
