Carbon Steel DIN 1630 Pipes

Home > Carbon Steel > Carbon Steel DIN 1630 Pipes

Carbon Steel DIN 1630 Pipes Manufacturer, Supplier and Exporter in Indonesia, Jakarta

Bulan Pipes and Tubes, located in Jakarta, Indonesia, stands out as a top manufacturer and supplier of Carbon Steel DIN 1630 Pipes. They specialize in providing high-performance seamless pipes that are perfect for critical mechanical and pressure-bearing applications. Crafted with precision and built to last, these pipes meet the DIN 1630 standard, making them ideal for dynamic loads and high-pressure systems. Bulan offers a variety of Carbon Steel DIN 1630 Pipes in different diameters, wall thicknesses, and custom lengths. With a strong commitment to international quality, quick delivery, and tailored solutions, Bulan serves industries like petrochemical, automotive, and construction with dependable piping systems.

1630 Carbon Steel Thin Wall Pipe Supplier in Indonesia, ASME A210 DIN 1630 Pipe Exporter in Indonesia, DIN 1630 Carbon Steel Pipe Sizes in mm, DIN 1630 Carbon Steel Pipe Manufacturer in Surabaya, Carbon Steel DIN 1630 Pipes Price List in Bekasi, Large Diameter DIN 1630 Carbon Steel Pipe Distributor in Surabaya, Carbon Steel DIN 1630 Pipes in Bandung, Carbon Steel 1630 Pipes Supplier in Surabaya, DIN 1630 CS Pipes Distributor in Jakarta

Typically, Carbon Steel DIN 1630 Pipes are made up of Carbon (max 0.25%), Manganese (max 1.20%), Silicon (max 0.35%), along with trace elements such as Phosphorus and Sulfur. These non-alloy steel pipes boast impressive mechanical strength, featuring a tensile strength ranging from 440 to 570 MPa and a yield strength of 235 MPa or more. Depending on their dimensions, elongation can vary between 20% and 25%. DIN 1630 pipes are known for their excellent machinability and good weldability, making them suitable for both cold and hot forming. They excel in pressure service at both ambient and elevated temperatures, where reliability and strength are paramount.

Carbon Steel DIN 1630 Pipes Specification

Standard	ASME A210,JIS G3455,JIS G3456,DIN 1629/3,DIN1629/4
Out Diameter	1/2″-48″(6mm-1240mm)
Wall Thickness	1mm-200mm
Length	5.8-12m ,random length or fixed length
Heat Treatment	Anneal etc
Thecnical	Hot Rolled,Cold Drawn
Package	In Bundling,In Bulk
Suface Treatment	Oil Coating,Black Painted,Varnish,Anti-Corrosion
Payment Terms	T/T,L/C
Application	1>Water Transportation 2>Supply Heat and Gas 3>Long Distance Transport Oil and Natural Gas 4>Agricultural Irrigation 5>Water Conservancy Project

Carbon Steel DIN 1630 Pipes Chemical Composition

Carbon	Silicon	Manganese	Phosphorous	Sulphur	Molybdenum	Nickel	Chromium	Copper	Others
max 0.22	max 0.55	max 1.60	0.04	0.035	–	–	–	–	Al min 0.020

Carbon Steel DIN 1630 Pipes Mechanical Properties

Yield Strength		Tensile Strength			Elongation A5 min
MPa min	ksi min	MPa min	MPa min	ksi min	Percentage
		500	650	–	21

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ANSI B36.19M Carbon Steel DIN 1630 Pipes Exporter in Jakarta, Carbon Steel DIN 1630 Pipes Price List in Indonesia, DIN 1630 CS Pipes Supplier in Indonesia, Carbon Steel DIN 1630 Pipes Exporter in Surabaya, DIN 1630 Carbon Steel Pipes Exporter in Surabaya, ASME A210 DIN 1630 Pipe Size Chart, Carbon Steel DIN 1630 Pipes Price in Bandung, DIN 1630 Carbon Steel Pipe Weight Chart, Schedule 40 DIN 1630 Carbon Steel Pipe Thickness, DIN 1630 Pipes Supplier in Bekasi, Carbon Steel DIN 1630 Pipes Stockist in Indonesia

Why Choose Carbon Steel DIN 1630 Pipes from Bulan Pipes and Tubes?

Choosing Carbon Steel DIN 1630 Pipes from Bulan Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Carbon Steel DIN 1630 Pipes Supplier in Indonesia, Jakarta

Bulan Pipes and Tubes is one of the largest Carbon Steel DIN 1630 Pipes suppliers in Indonesia, Jakarta, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

Carbon Steel DIN 1630 Pipes Dimensions

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ANSI B36.19M Carbon Steel DIN 1630 Pipes Exporter in Jakarta, DIN 1630 Carbon Steel Pipe Price List in Indonesia, DIN 1630 CS Pipe Supplier in Indonesia, Carbon Steel DIN 1630 Pipes Exporter in Surabaya, Carbon Steel DIN 1630 Pipes Exporter in Surabaya, DIN 1630 Pipes Size Chart, 1630 Carbon Steel Pipe Price in Bandung, DIN 1630 Pipes CS Weight Chart, Carbon Steel DIN 1630 Pipes Thickness, CS DIN 1630 Pipes Supplier in Bekasi, 1630 Carbon Steel Thin Wall Pipe Stockist in Indonesia

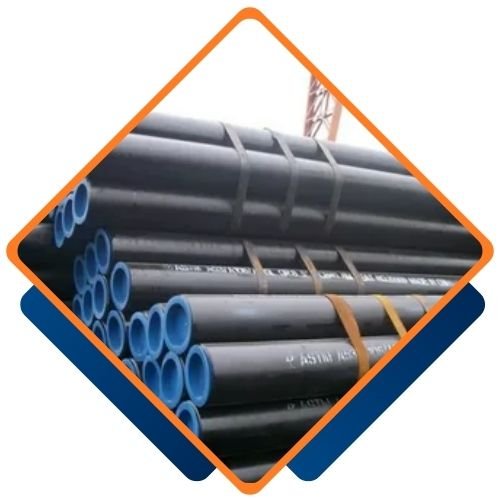

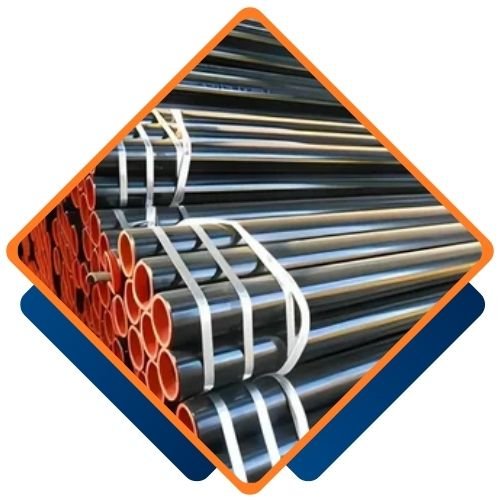

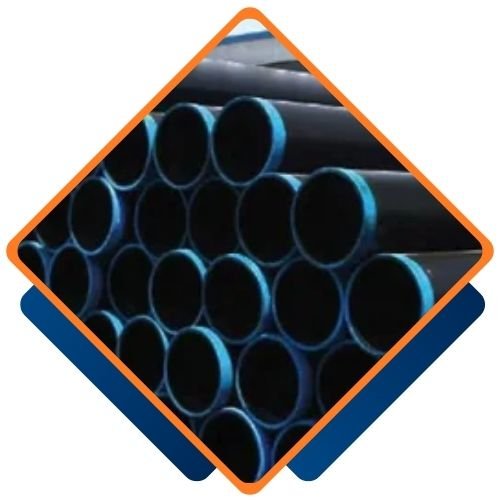

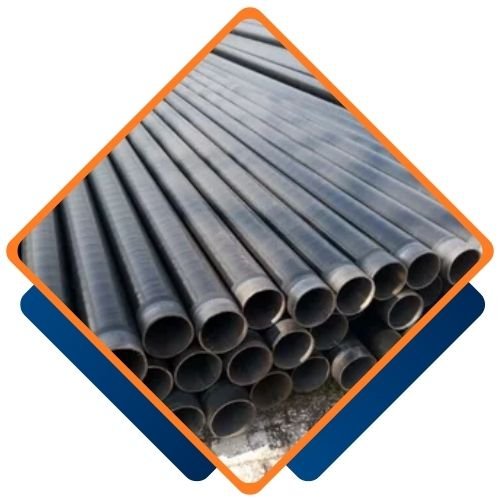

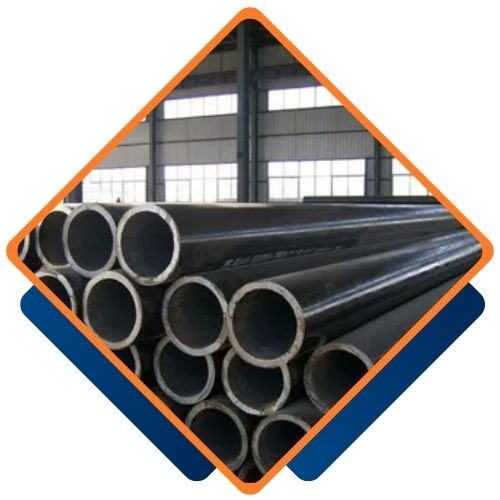

Types of Carbon Steel DIN 1630 Pipes

Are Custom Sizes Available for Carbon Steel DIN 1630 Pipes?

Yes, we offer custom sizes for Carbon Steel DIN 1630 Pipes to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.

Carbon Steel DIN 1630 Pipes Supplier in Indonesia, 1630 Carbon Steel Thin Wall Pipe Exporter in Indonesia, CS DIN 1630 Pipes Manufacturer in Surabaya, Carbon Steel DIN 1630 Pipes Price List in Bekasi, DIN 1630 Pipes Carbon Steel Distributor in Surabaya, 1630 CS Pipes in Bandung, DIN 1630 Pipes Supplier in Surabaya, Carbon Steel DIN 1630 Pipes Distributor in Jakarta, CS DIN 1630 Pipe Sizes in mm

You’ll find Carbon Steel DIN 1630 Pipes commonly used in high-pressure hydraulic systems, oil and gas transmission lines, boilers, and heat exchangers. They are also essential in structural frameworks, mechanical systems, and fluid power circuits across the automotive, construction, and industrial processing sectors. Thanks to their seamless design, these pipes deliver outstanding performance under stress, vibration, and high flow rates. Bulan Pipes and Tubes ensures that their DIN 1630 pipes are produced with precise tolerances, providing robust, leak-free, and cost-effective solutions for even the most demanding operational environments.
