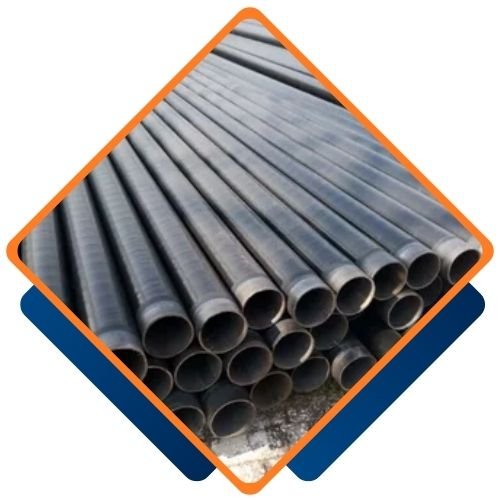

Carbon Steel EN10216-2 Pipe Manufacturer, Supplier and Exporter in Indonesia, Jakarta

Bulan Pipes and Tubes is a reputable manufacturer and supplier based in Jakarta, Indonesia, specializing in high-quality Carbon Steel EN10216-2 Pipes. We’re committed to providing seamless steel pipes designed for high-temperature and pressure applications, all while adhering to international standards. Our focus on excellence means we deliver durable, precisely crafted pipes that are perfect for power generation, petrochemical, and industrial boiler systems. With advanced production capabilities and rigorous quality assurance, we ensure reliable performance even in critical conditions. Strategically located in Jakarta, we efficiently cater to clients throughout Indonesia and Southeast Asia, offering timely deliveries and responsive customer support.

Carbon Steel EN10216-2 Pipe Supplier in Indonesia, CS EN10216-2 Pipe Exporter in Indonesia, DIN 17175 CS EN10216-2 Pipe Sizes in mm, EN10216-2 Carbon Steel Pipe Manufacturer in Surabaya, ASTM A312 EN 10216-2 CS Pipe Price List in Bekasi, CS EN10216-2 Pipe Distributor in Surabaya, DIN 17175 EN10216-2 Carbon Steel Pipe in Bandung, ASTM A312 EN 10216-2 CS Pipe Supplier in Surabaya, DIN 17175 EN10216-2 Carbon Steel Pipe Distributor in Jakarta

Carbon Steel EN10216-2 pipes are crafted from fine-grain, non-alloy, and alloy steels that excel in high-temperature settings. Common grades include P235GH, P265GH, and 16Mo3. These pipes typically feature carbon content of up to 0.20%, manganese ranging from 0.60% to 1.20%, and trace elements like silicon, phosphorus, and sulfur. Their mechanical properties boast a tensile strength of 360–580 MPa and yield strength between 235 and 275 MPa, depending on the grade. With excellent heat resistance, creep strength, and elongation capacity, these pipes are ideal for pressure vessels, steam lines, and heat exchangers in power and process industries.

Carbon Steel EN10216-2 Pipe Specification

Standard	:	EN 102ie-2
EN 10216 Steel Pipe Materials	:	P195GH, P235GH, P265GH
EN 10216 Steel Pipe Outside Diameter	:	10.2mm – 711mm
EN 10216 Steel Pipe Wall Thickness	:	1.6mm – 100mm
EN 10216 Steel Pipe Delivery Conditon	:	Normalized
EN 10216 MOQ	:	2 Tons per size
EN 10216 Pipe Shippment	:	20’GP/40’GP/40’HQ FCL or LCL
EN 10216 Pipe Delivery	:	Depends on the stock availability and actual order quantities.

Carbon Steel EN10216-2 Chemical Composition

teel grades	CHEMICAL COMPOSITION (LADLE ANALYSIS)
teel grades	C% max	Si% max	Mn% max	P% max	S% max	Cr% max	Mo% max	Ni% max	Al.cał% min	Cu% max	Nb% max	Ti% max	V% max	Cr+ Cu+ Mo+ Ni% MAX
EN P195GH	0,13	0,35	0,70	0,025	0,020	0,30	0,08	0,30	>\= 0,020	0,30	0,010	0,040	0,02	0,70
EN P235GH	0,16	0,35	1,20	0,025	0,020	0,30	0,08	0,30	>\= 0,020	0,30	0,010	0,040	0,02	0,70
EN P265GH	0,20	0,40	1,40	0,025	0,020	0,30	0,08	0,30	>\= 0,020	0,30	0,010	0,040	0,02	0,70
16Mo3	0,12- 0,20	0,35	0,40- 0,70	0,025	0,020	0,30	0,25- 0,35	0,30	>\= 0,020	0,30	–	–	–	–
14MoV6-3	0,10- 0,15	0,15- 0,35	0,40- 0,70	0,025	0,020	0,30- 0,60	0,50- 0,70	0,30	>\= 0,020	0,30	–	0,22-0,28	–	–
13CrMo4-5	0,15	0,50- 1,00	0,30- 0,60	0,025	0,020	1,00- 1,50	0,45- 0,65	0,30	>\= 0,020	0,30	–	–	–	–
10CrMo9-10	0,10- 0,17	0,35	0,40- 0,70	0,025	0,020	0,70- 1,15	0,40- 0,60	0,30	>\= 0,020	0,30	–	–	–	–

Carbon Steel EN10216-2 Pipe Mechanical properties

Mechanical properties
Pipe types	Steel grades	Mechanical properties during tensile testing in room temperature							Resilience
Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2		Upper yield limit or yield strength Re or R0,2 for wall thickness of t min				Tensile strength Rm	Elongation A min%		Minimum energy average absorbed KVJ at the temperature of 0°C
		T<\=16	16<T<\=40	40<t<\=60	60<T<\=60	Tensile strength Rm	Elongation A min%		I		T
		MPa	MPa	MPa	MPa	MPa	I	t	20	0	-10	20	0
	EN P195GH	195	–	–	–	320- 440	27	25	–	40	28	–	27
	EN P235GH	235	225	215	–	360- 500	25	23	–	40	28	–	27
	EN P265GH	265	255	245	–	410- 570	23	21	–	40	28	–	27
	16Mo3	280	270	260	–	450- 600	22	20	40	–	–	27	–
	14MoV6-3	320	320	310	–	460- 610	20	18	40	–	–	27	–
	13CrMo4-5	290	290	280	–	440- 590	22	20	40	–	–	27	–
	10CrMo9-10	280	280	270	–	480- 630	22	20	40	–	–	27	–

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

EN10216-2 Carbon Steel Pipe Exporter in Jakarta, DIN 17175 CS EN10216-2 Pipe Price List in Indonesia, EN 10216-2 Steel Pipes Supplier in Indonesia, ASTM A312 Carbon Steel EN10216-2 Pipe Exporter in Surabaya, Carbon Steel EN10216-2 Pipe Exporter in Surabaya, CS EN10216-2 Pipe Size Chart, ASTM A312 EN 10216-2 CS Pipe Price in Bandung, DIN 17175 EN10216-2 Carbon Steel Pipe Weight Chart, EN 10216-2 Steel Pipes Thickness, CS EN10216-2 Pipe Supplier in Bekasi,EN 10216-2 Steel Pipes Stockist in Indonesia

Why Choose Carbon Steel EN10216-2 Pipe from Bulan Pipes and Tubes?

Choosing Carbon Steel EN10216-2 Pipe from Bulan Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Carbon Steel EN10216-2 Pipe Supplier in Indonesia, Jakarta

Bulan Pipes and Tubes is one of the largest Carbon Steel EN10216-2 Pipe suppliers in Indonesia, Jakarta, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

ASTM A312 Carbon Steel EN10216-2 Pipe Supplier in Indonesia, EN 10216-2 Pipe Exporter in Indonesia, CS EN10216-2 Pipe Manufacturer in Surabaya, EN 10216-2 Steel Pipes Price List in Bekasi, DIN 17175 CS EN10216-2 Pipe Distributor in Surabaya, EN 10216-2 Pipe in Bandung, Carbon Steel EN10216-2 Pipe Supplier in Surabaya, DIN 17175 EN10216-2 Carbon Steel Pipe Distributor in Jakarta, ASTM A312 EN 10216-2 CS Pipe Sizes in mm

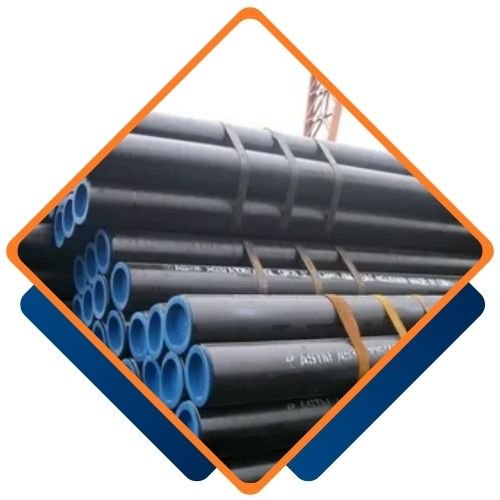

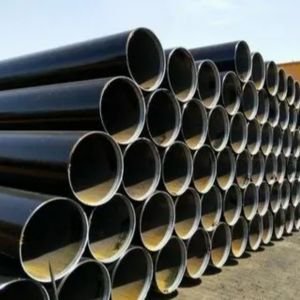

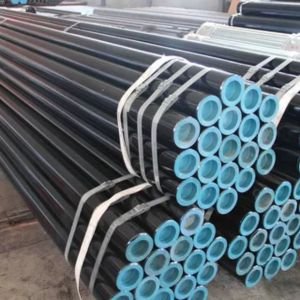

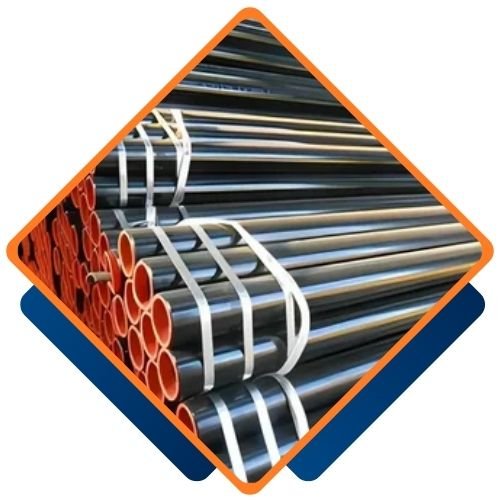

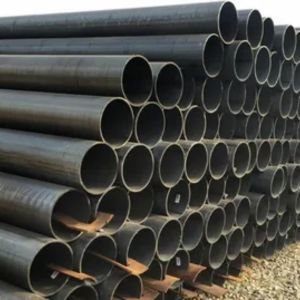

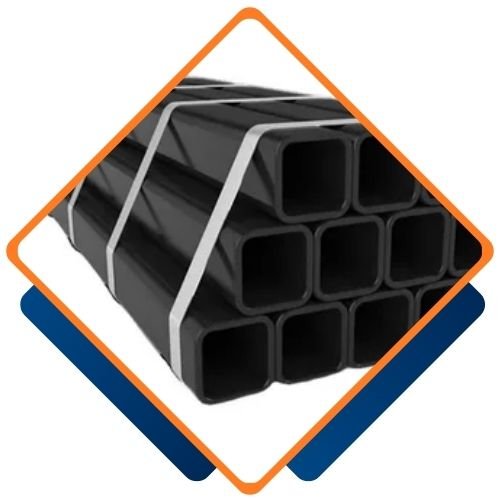

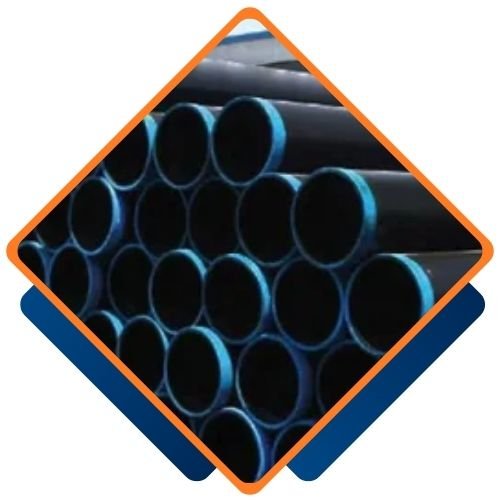

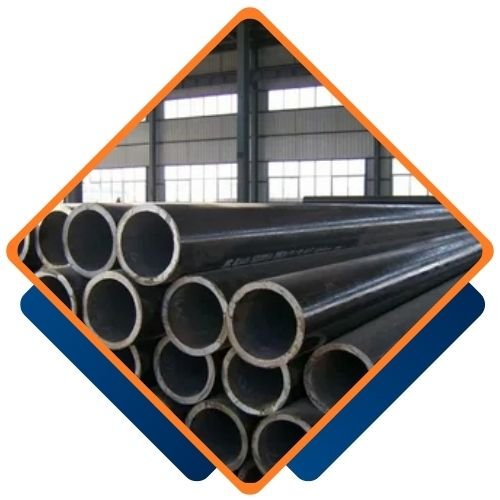

Types of Carbon Steel EN10216-2 Pipe

Are Custom Sizes Available for Carbon Steel EN10216-2 Pipe

Yes, we offer custom sizes for Carbon Steel EN10216-2 Pipe to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.

Carbon Steel EN10216-2 Pipe Exporter in Jakarta, EN10216-2 Carbon Steel Pipe Price List in Indonesia, EN 10216-2 CS Pipe Supplier in Indonesia, CS EN10216-2 Pipe Exporter in Surabaya, EN 10216-2 Steel Pipes Exporter in Surabaya, EN 10216-2 Pipe Size Chart, DIN 17175 EN10216-2 Carbon Steel Pipe Price in Bandung, ASTM A312 EN 10216-2 CS Pipe Weight Chart, CS EN10216-2 Pipe Thickness, ASTM A312 Carbon Steel EN10216-2 Pipe Supplier in Bekasi, EN 10216-2 CS Pipe Stockist in Indonesia

Carbon Steel EN10216-2 pipes find their primary use in high-temperature and high-pressure settings, such as power plants, oil refineries, chemical processing facilities, and industrial boilers. These seamless pipes are perfect for transporting steam, hot water, gas, and other fluids under pressure. Common applications include boiler tubes, heat exchanger tubes, superheaters, and pressure vessels, making them essential in various industrial processes.
