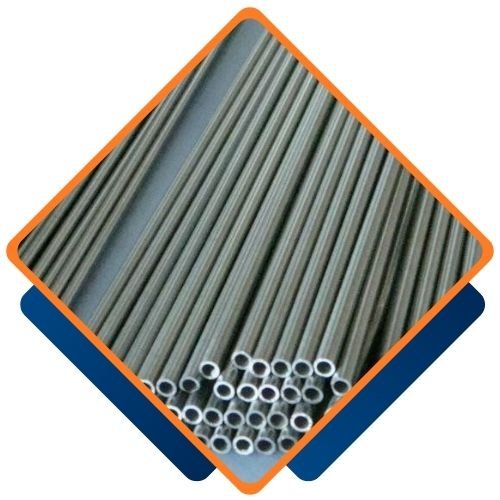

Home > Incoloy > Incoloy 800/800H/800HT Tubing
Bulan Pipes and Tubes stands out as a leading manufacturer and supplier of Incoloy 800/800H/800HT Tubing right in the heart of Jakarta, Indonesia. They cater to various industrial sectors that require materials with high strength and remarkable resistance to oxidation and carburization. These nickel-iron-chromium alloy tubes are perfect for high-temperature applications. With a strong commitment to quality, timely delivery, and customer satisfaction, Bulan Pipes and Tubes ensures that their tubing meets international standards and specifications. Their Incoloy 800 series tubing is a popular choice in the power, petrochemical, and heat treatment industries, known for its durability and structural integrity even in extreme conditions.
The Incoloy 800/800H/800HT Tubing is primarily composed of nickel (30-35%), chromium (19-23%), and iron (the balance), along with trace amounts of aluminum, titanium, and carbon. The variations in carbon content and annealing treatment enhance the alloys’ high-temperature strength and creep resistance. In terms of mechanical properties, these tubes boast a tensile strength ranging from 500 to 600 MPa, a yield strength of 200 to 275 MPa, and an elongation of at least 30%. They offer outstanding resistance to thermal cracking, oxidation, and carburization, maintaining their structural stability at temperatures over 600°C, making them a reliable choice for long-term use in demanding thermal environments.
Specifications ASTM B407, B514, B515 / ASME SB407, SB514, SB515
Dimensions ASTM, ASME and API
Size Range 15″NB – 150″NB
Outer Diameter 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Length Single Random, Double Random & Cut Length

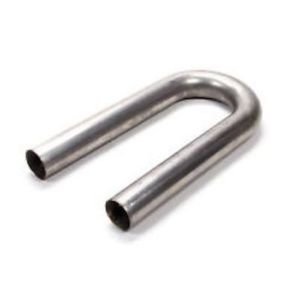

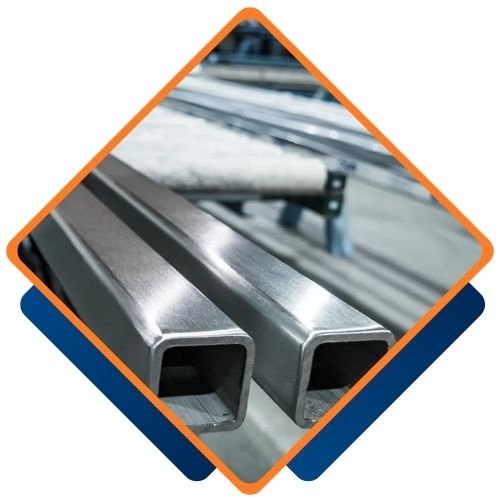

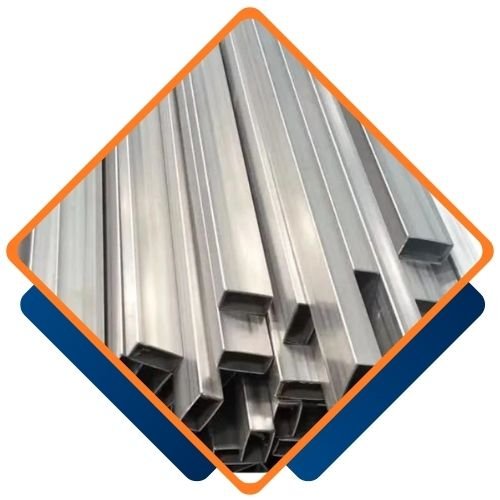

Form Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tube
Grade 800 / 800H / 800HT UNS (N08800, N08810, N08811), DIN (1.4876, 1.4958, 1.4959)
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4959 | – | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
| Element | Alloy 800 | Alloy 800H | Alloy 800HT |
| C | 0.10 max | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max | 1.50 max |
| Si | 1.00 max | 1.00 max | 1.00 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Fe | 39.50 min | 39.50 min | 39.50 min |
| Ni | 30.00 – 35.00 | 30.00 – 35.00 | 30.00 – 35.00 |
| Cr | 19.00 – 23.00 | 19.00 – 23.00 | 19.00 – 23.00 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy 800/800H/800HT Tubes from Bulan Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Bulan Pipes and Tubes, one of the largest suppliers of Incoloy 800/800H/800HT Tubing in the Indonesias, Jakarta. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Incoloy Alloy 800/800H/800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
Yes, we provide custom sizes for Incoloy 800/800H/800HT Tubes to meet your specific requirements. At Bulan Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@bulanpipes.id.

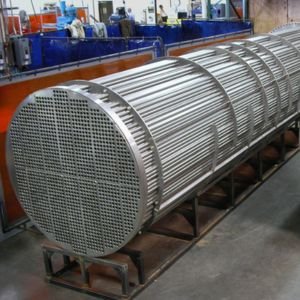

Incoloy 800/800H/800HT Tubing finds extensive use in industries that demand exceptional resistance to oxidation and high-temperature corrosion. You’ll commonly see these tubes in heat exchangers, transfer piping, radiant tubes, reformer outlet manifolds, superheaters, and pressure vessels within chemical processing and power plants. They are also crucial in nuclear reactors and hydrocarbon reformers, where mechanical strength and metallurgical stability are vital. Thanks to their impressive performance during thermal cycling, along with their durability and ease of fabrication, these tubes are ideal for industrial furnaces, petrochemical heaters, and equipment in the energy sector that face extreme heat and pressure.
