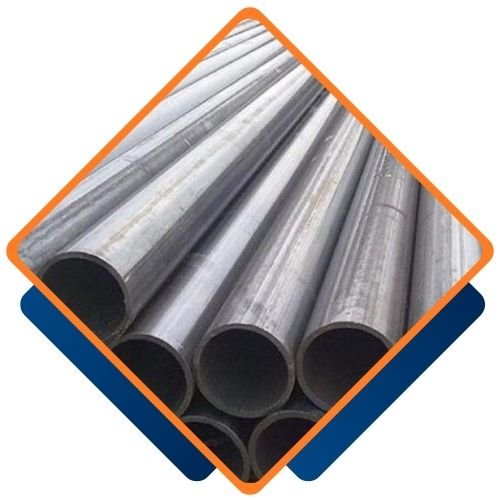

Bulan Pipes and Tubes, based in Jakarta, Indonesia, stands out as a top manufacturer and supplier of Monel K500 Pipes, specifically crafted for applications that demand high strength and resistance to corrosion. Monel K500 is a unique nickel-copper alloy that not only inherits the impressive corrosion resistance of Monel 400 but also incorporates aluminum and titanium for age-hardening, which significantly boosts its strength and hardness. These pipes are perfect for marine, chemical, petroleum, and offshore industries, where durability against seawater, sour gas, and harsh chemicals is essential. Bulan is committed to precision manufacturing, adhering to international standards, and ensuring reliable delivery, making them a go-to source for Monel K500 piping solutions.
Monel K500 Pipes are primarily made up of 63% nickel, 30% copper, along with small amounts of aluminum (2.3–3.15%) and titanium (0.35–0.85%), which enhance their mechanical properties through a process called precipitation hardening. These pipes boast remarkable strength, achieving a tensile strength of up to 965 MPa and a yield strength around 690 MPa, while also exhibiting high resistance to chloride stress-corrosion cracking, erosion, and fatigue. Monel K500 maintains excellent corrosion resistance in both marine and chemical settings, offering superior mechanical properties compared to standard Monel 400, making it an ideal choice for high-pressure and high-stress applications.
| Dimensions & Specifications | ASTM B 163 ASME SB 163 / ASTM B 165 ASME SB 165 |
|---|---|
| Sizes Available | 15 TO 150″ NB IN |

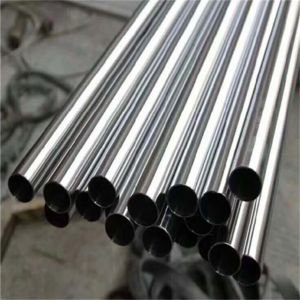

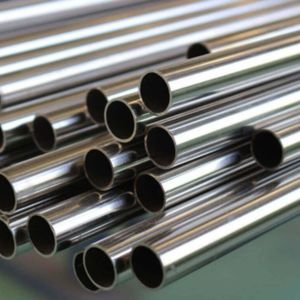

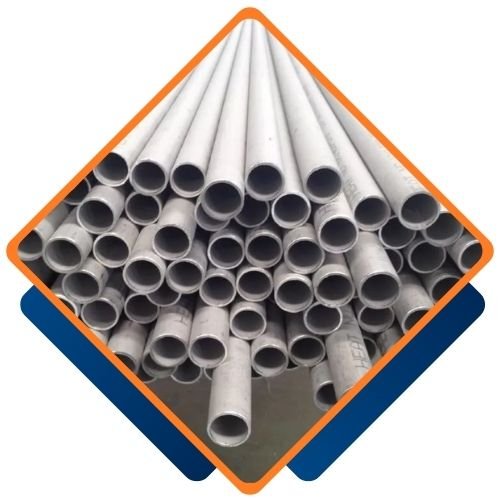

| Most famous types | Seamless / Welded / ERW / Fabricated |

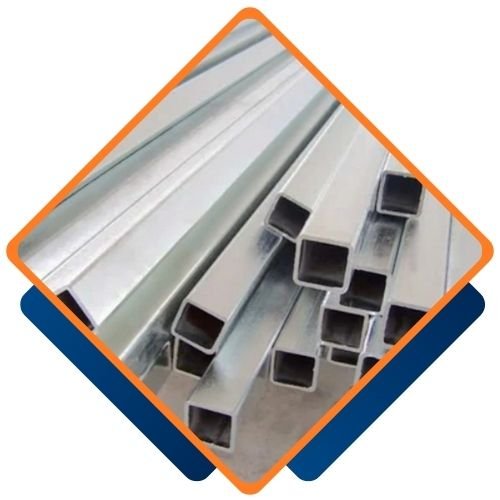

| Manufacturing Pipes Forms | Round, Hydraulic & square pipes |
| Pipe End Bevel | Plain End, BBE, POE, BE, BOE, TBE, BLE, PBE, BOE, TOE, BSE, Beveled End, Treaded |
| DIN Werkstoff nr. | 2.4375 |
| UNS designation | N05500 |
| Monel K500 | S | Ni | Fe | C | Si | Al | Mn | Cu |
| 0.02 max | 63.0 min | 1.0 – 2.5 | 0.3 max | 0.5 max | 0.50 max | 2.0 max | 28.0 – 34.0 |
| Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
| 8.8 g/cm3 | Psi – 35,000 , MPa – 240 | 1350 °C (2460 °F) | 40 % | Psi – 80,000 , MPa – 550 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Monel K500 Pipes from Bulan Pipes and Tubes for their outstanding corrosion resistance, high strength, durability, and superior performance in extreme conditions. These characteristics make them ideal for demanding industrial applications.
Bulan Pipes and Tubes, one of the largest suppliers of Monel K500 Pipes in Indonesia, Jakarta, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
| ASTM B165 Monel K500 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Yes, we offer custom sizes for Monel K500 Pipes to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.
Monel K500 Pipes find extensive use in marine engineering, offshore oil and gas platforms, pump shafts, valve components, and chemical processing equipment, particularly in environments where they face saltwater, acidic solutions, or harsh corrosive conditions. The alloy’s impressive strength and toughness make it perfect for fasteners, heat exchangers, springs, and high-pressure piping systems. It excels in sour gas service and is frequently utilized in subsea and deep-well operations. Additionally, its non-magnetic properties render it suitable for electronic and aerospace components.
