Home > Nickel Alloy > Nickel Alloy EFW Pipes

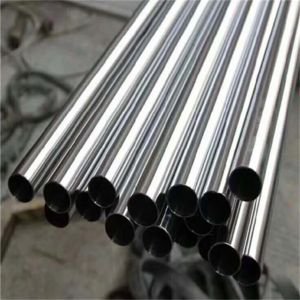

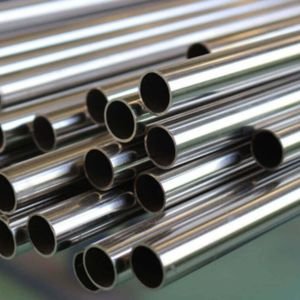

Bulan Pipes and Tubes, a reputable manufacturer and supplier located in Jakarta, Indonesia, specializes in high-quality Monel Welded Pipes designed for use in extremely corrosive and marine settings. These nickel-copper alloy pipes are celebrated for their remarkable resistance to seawater, acids, alkalis, and high-temperature oxidation. Utilizing cutting-edge welding techniques, Bulan guarantees precise weld integrity, accurate dimensions, and a consistent surface finish. Monel welded pipes are perfect for demanding sectors like oil & gas, chemical processing, and shipbuilding. With their exceptional strength and corrosion resistance, Bulan’s Monel pipes provide reliable performance even in the toughest operating conditions.
Monel Welded Pipes are primarily made up of 63–70% Nickel and 20–29% Copper, along with trace amounts of Iron, Manganese, Silicon, and Carbon. This unique alloy offers outstanding corrosion resistance, especially in marine and chemical environments. The mechanical properties include a tensile strength ranging from 480–700 MPa, yield strength between 170–345 MPa, and an elongation of approximately 30–40%. Monel retains its toughness across a broad temperature range and boasts good weldability and mechanical stability. Its high thermal conductivity and resistance to stress-corrosion cracking make it ideal for critical industrial applications that demand long-lasting durability.
| ASTM Specification | Astm B829 ASME SB829 |
|---|---|
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| ASTM B829 Nickel Alloy Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| ASTM B725 Nickel Alloy Welded Pipe Size | 5.0 – 1219.2 mm |
| Nickel-Cobalt Alloys EFW Pipe size | 5.0 – 1219.2 mm |
| Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg., |
| Nickel Pipe Schedule | XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160 |
| Nickel pipe Length | Double Random, Single Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Form | Nickel are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type of Nickel Alloy Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Nickel |
| Nickel pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Marking on Nickel Steel Pipe | All Astm B725 Nickel Alloy Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application of Nickel pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter NickelPipe |
| Nickel pipe manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
| Nickel pipe Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, Nickel HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP) |
| Nickel 200 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 Min | 0.15 Max | – | 0.35 Max | 0.1 Max | 0.4 Max | – | 0.01 Max | 0.25 Max | – | |
| Nickel 201 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| Balance | 0.15 Max | – | 0.35 Max | 0.35 Max | 0.40 Max | – | 0.01 Max | 0.25 Max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 G/Cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Nickel Alloy EFW Pipes from Bulan Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in nickel alloy products ensures you receive a top-tier solution tailored to your needs.
Bulan Pipes and Tubes, one of the largest suppliers of Nickel Alloy EFW Pipes in Indonesia, Jakarta, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for nickel alloy products in the region.
Yes, we offer custom sizes for Nickel Alloy EFW Pipes to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.
Monel Welded Pipes find extensive applications in marine engineering, offshore oil drilling, and chemical processing facilities due to their exceptional resistance to saltwater, hydrofluoric acid, and alkaline solutions. In the oil & gas industry, they are utilized for heat exchangers, refinery piping, and gas scrubbers. Monel pipes are also used in pump shafts, valves, condensers, and evaporators where durability in harsh conditions is essential. The aerospace and nuclear sectors appreciate Monel for its high strength and corrosion stability.
