SMO 254 Pipes

SMO 254 Pipes Manufacturer, Supplier and Exporter in Indonesia, Jakarta

Jakarta, Indonesia-based Brydon Pipes & Tubes is a renowned manufacturer and supplier of high-quality piping solutions with expertise in SMO 254 Pipes. Prized for their exceptional corrosion resistance and mechanical strength, these pipes are designed to satisfy the rigorous standards of contemporary industrial usage. Brydon Pipes & Tubes is dedicated to producing products that satisfy stringent international standards through accurate manufacturing and tailored service. With a strong emphasis on performance, customer satisfaction, and innovation, Brydon is the partner of choice for industries looking for proven piping systems to be used in corrosive and aggressive applications.

SMO 254 Pipes Exporter in Jakarta, SS UNS S31254 Pipes Supplier in Indonesia, SMO 254 Pipe Manufacturer in Surabaya, Alloy 254 Pipes Price List in Bekasi, ASTM A312 SMO 254 Pipe Distributor in Surabaya, SMO 254 1.4547 Pipes in Bandung, ASTM A312 TPSMO 254 Pipe Exporters in Jakarta

SMO 254 Pipes are manufactured from a high-alloy austenitic stainless steel containing about 20% chromium, 18% nickel, and 6% molybdenum, with nitrogen additions for added strength. These pipes have good pitting and crevice corrosion resistance and are best applicable in chloride-laden environments. The mechanical properties are a minimum of 220 MPa yield strength and 480 MPa tensile strength, providing sturdy performance under high pressure. SMO 254 also has high thermal stability, good elongation, and superior weldability, making it ideal for complex piping systems in contact with chemical and marine environments.

SMO 254 Pipes Specification

Pipe Standard	ASTM A312 ASME SA312
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
SMO 254 Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
SMO 254 Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for SMO 254 Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

SMO 254 Pipes Chemical Composition

Grade	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	17.5 – 18.5	19.5 – 20.5	6 – 6.5	0.5 – 1	0.18 – 0.22	0.02 max	1 max	0.8 max	0.03 max	0.01 max

SMO 254 Pipes Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1320-1390 ℃	650	300	35 %

Equivalent Grades of SMO 254 Pipes

STANDARD	WERKSTOFF NR.	UNS	SIS	AFNOR	EN
254 SMO	1.4547	S31254	2378	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7

SMO 254 Pipes Thermal Properties

Temperature, oC	W/m oC	Temperature, oF	Btu/ft h oF
20	10	68	6
100	12	200	7
200	14	400	8
300	16	600	9.5
400	18	800	10.5
500	20	1000	11.5
600	21	1200	12.5
700	23	1300	13

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TPSMO 254 Pipes Surabaya, SMO 254 Pipes Exporters in Bekasi, SMO 254 Pipe Manufacturers in Surabaya, SS UNS S31254 Pipes Supplier in Indonesia, SS SMO 254 Schedule 20 Pipe Stockist in in Bandung, Stainless Steel SMO 254 Pipes Distributor in Jakarta, SMO 254 Pipes in Indonesia

Why Choose SMO 254 Pipes from Bulan Pipes and Tubes?

Choosing SMO 254 Pipe from Bulan Pipes and Tubes assures exceptional quality and durability to suit demanding applications. Our pipes exhibit outstanding corrosion resistance and strength, providing long-lasting performance. With our focus on precision manufacturing, we efficiently meet technical needs. Our team of experts provide personalized support and timely deliveries, enhancing your experience. We put customer satisfaction first and strive to build lasting partnerships. Trust Bulan Pipes and Tubes for the reliable, high-performance piping solutions you need.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest SMO 254 Pipes Supplier in Indonesia, Jakarta

Bulan Pipes and Tubes, one of the largest suppliers of SMO 254 Pipes in Indonesia, Jakarta, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

SMO 254 Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

SS SMO 254 Schedule 40 Pipe Price List in Indonesia, S31254 Pipes Supplier in Indonesia, SS SMO 254 Pipes Price Per Kg, ASTM A312 SMO 254 Pipe Exporter in Surabaya, SMO 254 Pipes Stockist in Surabaya, 1 inch SS Pipe Price List in Bandung, SS SMO 254 Pipe Weight Chart, SS SMO 254 Schedule 20 Pipe Thickness, Austenitic SMO 254 Pipe Manufacturers in Bekasi

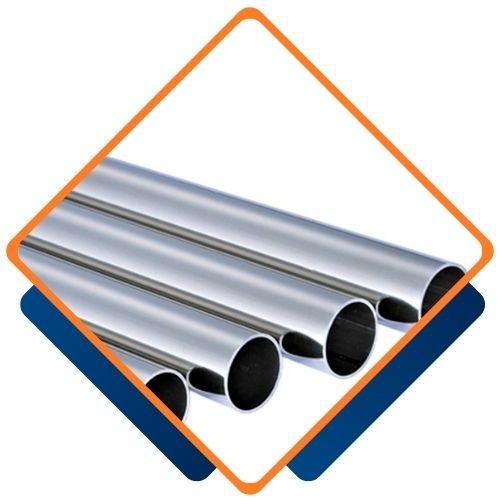

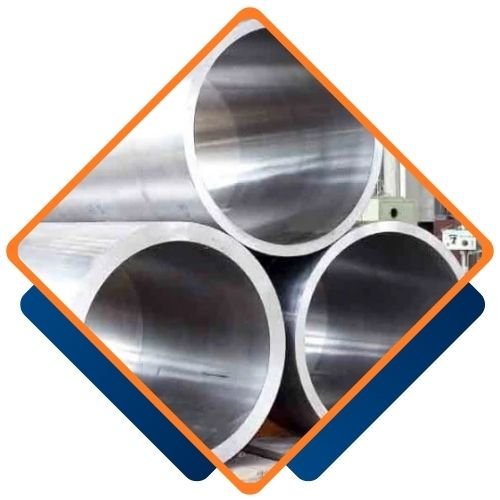

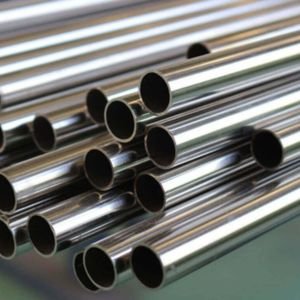

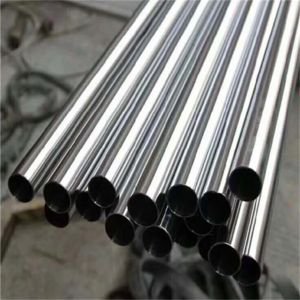

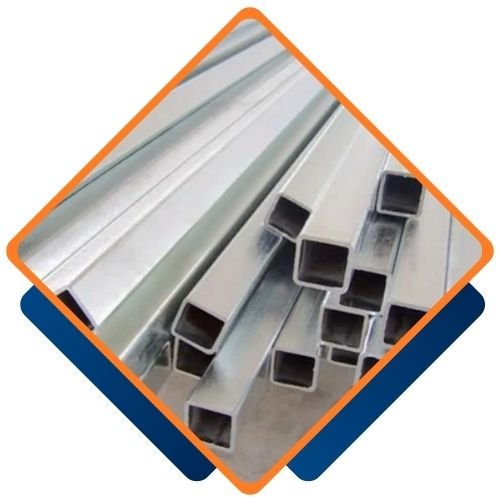

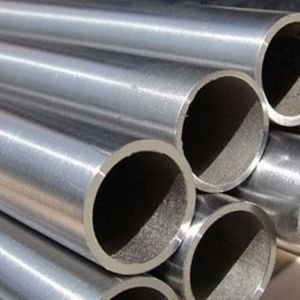

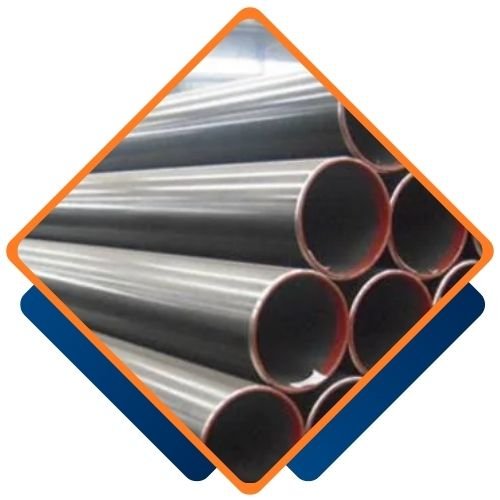

Types of SMO 254 Pipes

Are Custom Sizes Available for SMO 254 Pipes?

Yes, we offer custom sizes for SMO 254 Pipes to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.

SS UNS S31254 Pipes Exporters in Bandung, ASME SA 312 TPSMO 254 Pipes Surabaya , Alloy 254 Pipes Distributor in Indonesia, SS SMO254 Pipes Price Per Kg, SMO 254 Pipe Supplier in Indonesia, SS SMO254 Pipe Stockist in Bekasi, SMO 254 Pipes Dealer in Surabaya

SMO 254 Pipes have extensive application in industries requiring high corrosion resistance and strength. In the chemical industry, they are suitable for conveying aggressive media including acids and chlorides. In marine use, their pitting resistance against seawater makes them ideal for ship building, offshore platforms, and desalination plants. They are also indispensable in the oil and gas industry, applied to exploration, production, and refining processes where severe pressure and harsh environmental conditions are prevalent. Brydon‘s SMO 254 Pipes provide lasting reliability, making them a reliable solution for challenging industrial and corrosive conditions globally.
