Home > Stainless Steel >Stainless Steel 304L EFW pipes

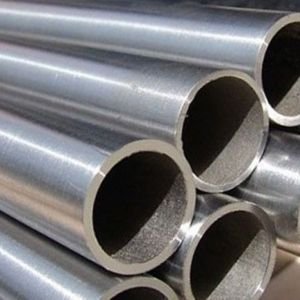

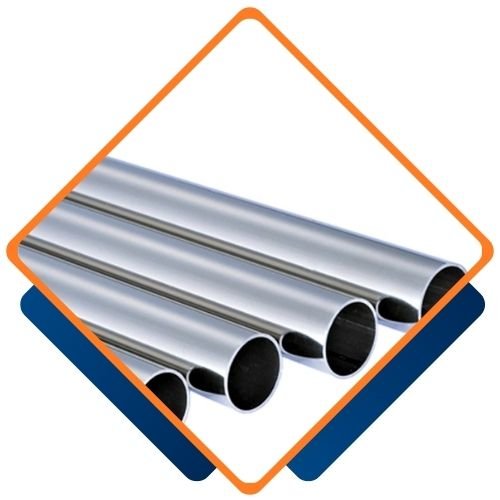

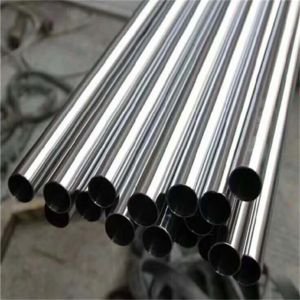

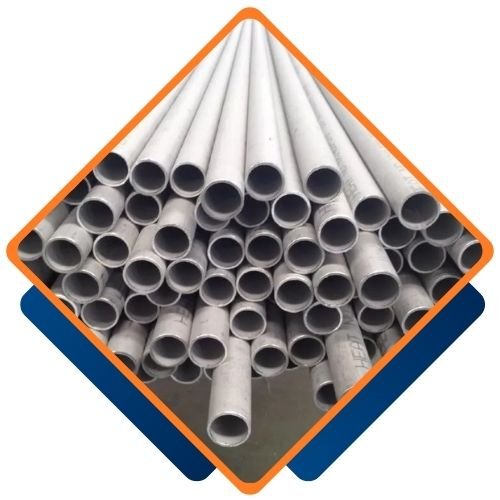

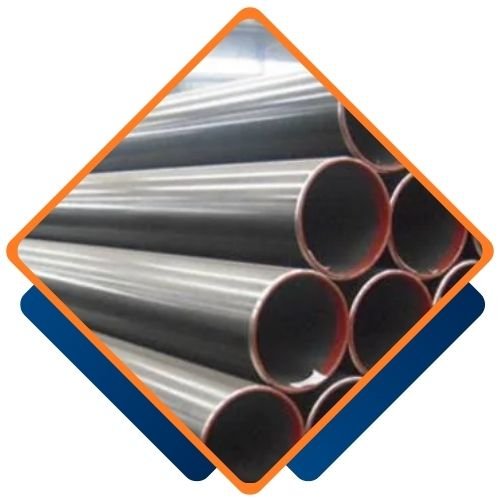

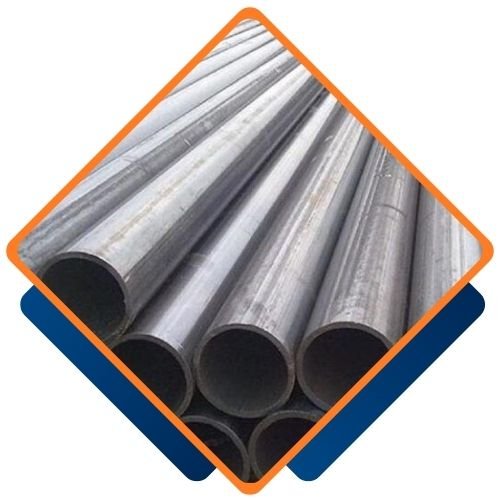

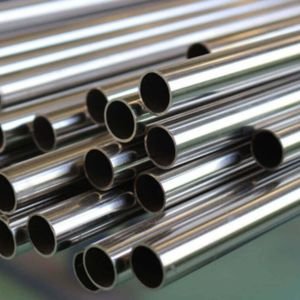

Bulan Pipes and Tubes is a trusted manufacturer and supplier of Stainless Steel 304L EFW Pipes, located in Jakarta, Indonesia. These pipes are produced using Electric Fusion Welding (EFW) technology and are made from low-carbon stainless steel grade 304L, which provides outstanding corrosion resistance, weldability, and durability. SS 304L EFW pipes are perfect for applications that demand clean, robust, and corrosion-resistant piping, such as in the chemical, food processing, water treatment, and pharmaceutical sectors. Bulan guarantees that each pipe adheres to global ASTM standards, ensuring precision, strength, and long-lasting performance for both industrial and commercial settings.
Stainless Steel 304L EFW Pipes consist of about 18–20% chromium, 8–12% nickel, and a low carbon content (≤0.03%), which helps minimize the risk of intergranular corrosion during welding. These pipes boast excellent strength and ductility, with a minimum tensile strength of 485 MPa and a yield strength of 170 MPa. The EFW process guarantees consistent weld integrity and a smooth surface finish. SS 304L also offers good toughness, oxidation resistance, and ease of fabrication, making it a favored choice for piping systems that encounter mildly corrosive environments and moderate temperatures.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304L | S30403 | 1.4306 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 3304S11 | 03Х18Н11 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304L | 485 | 40 | 170 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304L EFW Pipes from Bulan Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
We offer custom sizes for Stainless Steel 304L EFW Pipes to meet your specific needs. Our dedicated team at Bulan Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@bulanpipes.id.
Stainless Steel 304L EFW Pipes are extensively utilized in chemical processing, food and beverage systems, pharmaceutical production, and water purification, where clean and corrosion-resistant materials are essential. Their superb weldability and low carbon content make them ideal for welded pressure vessels, fluid transport lines, hygienic piping, and structural applications. These pipes are also commonly found in heat exchangers, dairy equipment, marine applications, and low-temperature storage systems. The smooth internal surface of EFW pipes enhances fluid flow and minimizes contamination risks, making SS 304L EFW pipes a preferred option for durability and reliability.
