Home > Stainless Steel >Stainless Steel 310H EFW Pipes

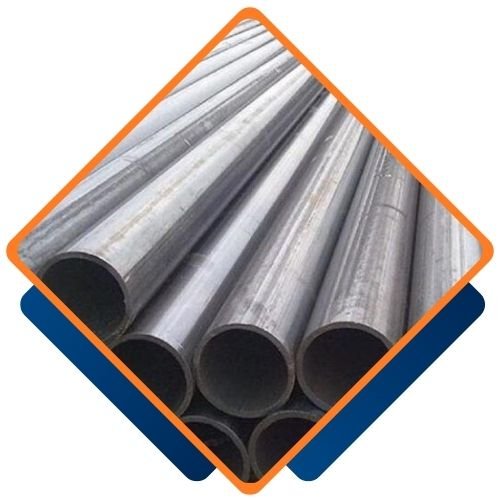

Bulan Pipes and Tubes is a reputable manufacturer and supplier of Stainless Steel 310H EFW Pipes, based in Jakarta, Indonesia. Engineered for high-temperature applications, SS 310H is a high carbon variant of 310, providing enhanced strength and creep resistance when exposed to elevated temperatures. These Electric Fusion Welded (EFW) pipes are perfect for use in furnaces, heat exchangers, petrochemical systems, and power plants. Adhering to ASTM and ASME standards, Bulan’s 310H EFW pipes boast excellent oxidation resistance, outstanding weldability, and impressive durability. The company offers high-performance piping solutions tailored for industrial applications that demand reliable strength in challenging thermal conditions.
Stainless Steel 310H EFW Pipes consist of 25% chromium, 20% nickel, and a higher carbon content (≥0.04%) to boost high-temperature strength. This alloy showcases remarkable resistance to oxidation, sulfidation, and thermal cycling. Its mechanical properties include a minimum tensile strength of 515 MPa and a yield strength of 205 MPa, along with good elongation and ductility. The EFW process guarantees consistent quality, precise dimensions, and robust weld integrity. SS 310H retains its mechanical integrity at temperatures reaching up to 1100°C, making it suitable for extreme heat and high-stress situations.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | JIS | BS | GOST | EN |
| SS 310H | S31009 | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 mi |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 310H | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 310H EFW Pipes from Bulan Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | |
| SS Pipes Grade | Tensile Strength, N/mm2 (min) | Yield Strength, N/mm2 (min) | Elongation, % (min) |
| TP310H | OD < 17,1 mm – 515; | OD < 17,1 mm – 205; | 35 |
| OD > 17,1 mm – 485 | OD > 17,1 mm – 170 |
We offer custom sizes for Stainless Steel 310H EFW Pipes to meet your specific needs. Our dedicated team at Bulan Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@bulanpipes.id.
Stainless Steel 310H EFW Pipes find extensive use in high-temperature and high-pressure settings. Common applications include furnace components, radiant tubes, heat exchangers, superheaters, and waste incinerators. These pipes are also employed in the chemical and petrochemical sectors, power generation, and thermal processing systems, where resistance to oxidation, creep, and thermal fatigue is crucial. The increased carbon content in 310H enhances strength during prolonged heat exposure, making it an excellent choice for service in elevated temperature zones. With superb weldability and durability, these pipes are designed to meet the demands of various industrial applications.
