Brydon Pipes & Tubes, Jakarta, Indonesia, is a renowned producer and exporter of Stainless Steel 317 and 317L Welded Tubing, which boasts excellent corrosion resistance, strength, and consistency. Our tubing is suitable for rigorous applications in chemical, petrochemical, and pharmaceutical industries, providing excellent performance under acidic and chloride-rich environments. Through the latest manufacturing technology, rigorous quality control, and timely delivery, we follow international standards and surpass customer expectations. Brydon’s welded tubing provides consistent quality and efficient operation over a long period of time, thus being the ideal option for complex and high-criticality industrial applications.
Stainless Steel 317 and 317L Welded Tube contains 18–20% chromium, 13–15% nickel, and 3–4% molybdenum, providing greater resistance to corrosion, particularly against acidic, chloride-containing, and chemical-containing environments. The tube gives good mechanical properties with a tensile strength of 515 MPa, yield strength of 205 MPa, and very good elongation and ductility. The 317L version has reduced carbon content, which improves weldability and minimizes carbide precipitation. Such attributes provide structural endurance and longevity in high-temperature and high-pressure industrial applications.
Welded Pipes & Tubes Size : 1 / 8″ NB – 24″ NB
Specifications : ASTM A/ASME SA213, A249, A269, A312, A358
Standard : ASTM, ASME and API
Length : Single Random, Double Random & Required Length
Outer Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Thickness : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Welded

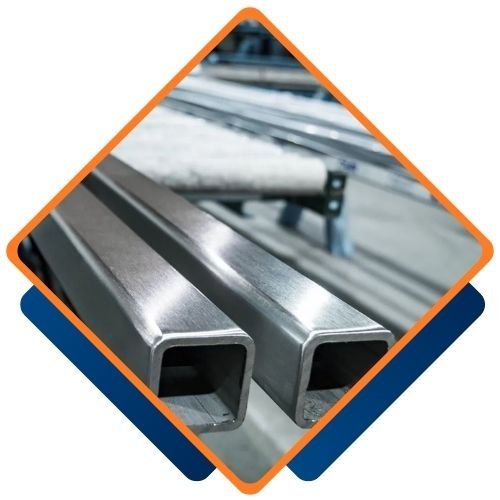

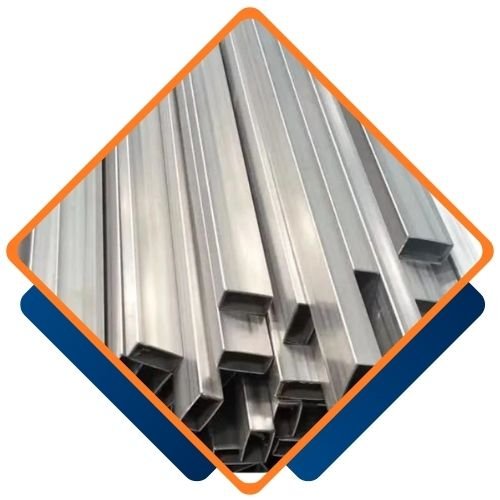

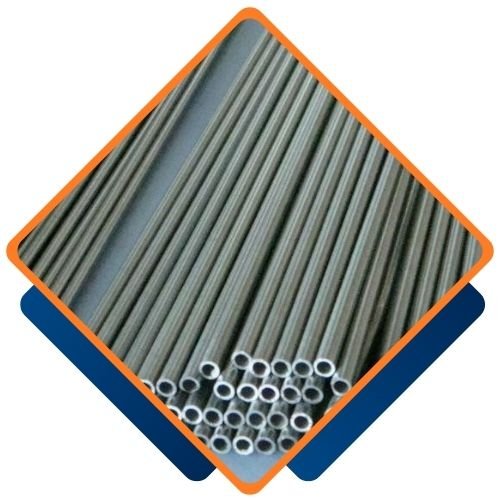

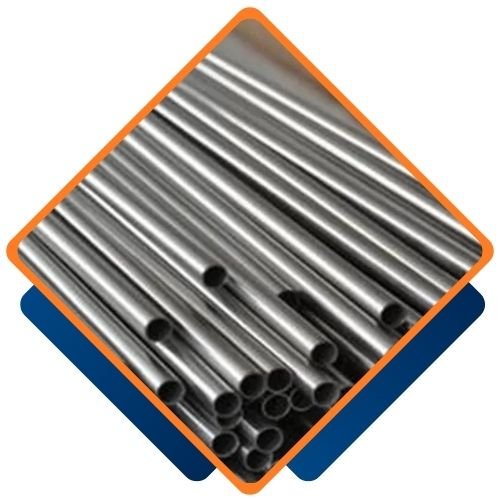

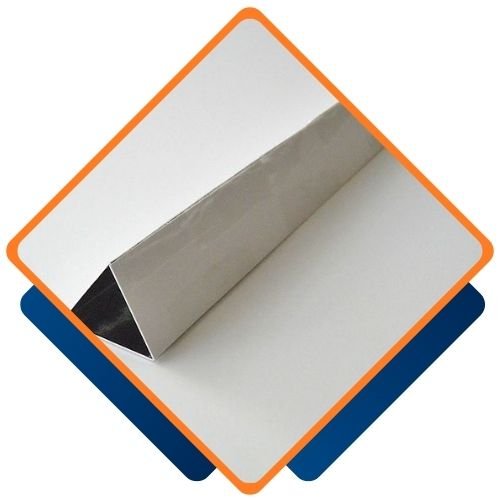

Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 317 and 317L Welded Tubing from Bulan Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Bulan Pipes and Tubes is the largest supplier of Stainless Steel 317 and 317L Welded Tubing in Indonesia, Jakarta. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Yes, Bulan Pipes and Tubes offer large custom designs for Stainless Steel 317 and 317L Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@bulanpipes.id.
Stainless Steel 317 and 317L Welded Tubing finds extensive applications in areas demanding outstanding corrosion resistance, thermal stability, and mechanical strength. It is used prominently in chemical processing facilities, petrochemical plants, pharmaceutical production, and the food and beverage sector. 317/317L tubing is suitable for carrying hostile chemicals, acids, and chloride-bearing fluids owing to its pitting and crevice corrosion resistance. The tubing finds application in boilers, heat exchangers, as well as pressure vessels, with stable performance at high temperatures. 317/317L tubing possesses good weldability and formability, making it feasible for construction, HVAC, and fabrication industrial applications.
