Stainless Steel 347H Pipes

Home > Stainless Steel >Stainless Steel 347H Pipes

Stainless Steel 347H Pipes Manufacturer, Supplier and Exporter in Indonesia, Jakarta

Bulan Pipes and Tubes, located in Jakarta, Indonesia, stands out as a leading manufacturer and supplier of Stainless Steel 347H Pipes, specifically crafted for high-temperature and high-pressure environments. These pipes are enhanced with niobium, which provides exceptional resistance to intergranular corrosion and remarkable mechanical strength even at elevated temperatures. At Bulan, the 347H pipes are produced with meticulous attention to dimensional accuracy, utilizing cutting-edge technology and rigorous quality control. Perfect for applications like heat exchangers, boilers, and chemical processing systems, these pipes are a go-to choice in industries where thermal stability and durability are crucial, ensuring reliable performance in demanding and high-stress conditions.

347H Stainless Steel Pipes Exporter in Jakarta, SS UNS S34709 Pipes Supplier in Indonesia, 347H Stainless Steel Pipe Manufacturer in Surabaya, SUS 347H Pipes Price List in Bekasi, ASTM A312 Stainless Steel 347H Pipe Distributor in Surabaya, Stainless Steel 1.4961 Pipes in Bandung, Stainless Steel TP347H Pipe Exporters in Jakarta

Stainless Steel 347H Pipes are an austenitic stainless steel alloy, primarily made up of 17–20% Chromium, 9–13% Nickel, and 0.04–0.10% Carbon, with niobium (columbium) included for stabilization. This unique blend boosts resistance to intergranular corrosion and stress rupture at high temperatures. The pipes showcase impressive tensile strength ranging from 515–750 MPa, yield strength between 205–275 MPa, and an elongation of about 40%. Additionally, 347H offers excellent creep resistance and oxidation resistance up to 1000°C, making it a top choice for continuous high-temperature applications in petrochemical, refinery, and power generation sectors.

Stainless Steel 347H Pipes Specification

Pipe Standard	ASTM A312 ASME SA312 / ASTM A358 ASME SA358
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Stainless Steel Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
Stainless Steel Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

347H Stainless Steel Pipes Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Cb	Ni	Fe
SS 347H	0.04 – 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	8xC – 1.10	9.0 -13.0	63.72 min

SS 347H Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
347H	515	205	40	92	201

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SS 347H Schedule 40 Pipe Price List in Indonesia, Stainless Steel S34709 Pipes Supplier in Indonesia, SS 347H Pipes Price Per Kg, ASTM A312 Stainless Steel 347H Pipe Exporter in Surabaya, AISI 347H Pipes Stockist in Surabaya, 1 inch SS 347H Pipe Price List in Bandung, SS 347H Pipe Weight Chart, SS 347H Schedule 20 Pipe Thickness, 347H Austenitic Stainless Steel Pipe Manufacturers in Bekasi

Why Choose Stainless Steel 347H Pipes from Bulan Pipes and Tubes?

Choosing Stainless Steel 347H Pipes from Bulan Pipes and Tubes ensures you get the high quality products you need. Our pipe is made from premium materials, providing exceptional strength and corrosion resistance. With extensive industry experience, we put customer satisfaction first, and provide expert guidance throughout the selection process. We offer competitive pricing and strict quality control to meet international standards. Additionally, our commitment to on-time delivery ensures that your services are delivered on time. Trust Brydon for reliable, high-performance plumbing solutions that will stand the test of time.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 347H Pipes Supplier in Indonesia, Jakarta

Bulan Pipes and Tubes, one of the largest suppliers of Stainless Steel 347H Pipes in Indonesia, Jakarta, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 347H Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ASME SA 312 TP347H Pipes Surabaya, Stainless Steel 347H Pipes Exporters in Bekasi, 347H Stainless Steel Pipe Manufacturers in Surabaya, SS UNS S34709 Pipes Supplier in Indonesia, SS 347H Schedule 20 Pipe Stockist in in Bandung, SS 347H Pipes Distributor in Jakarta, 347H Stainless Steel Pipes in Indonesia

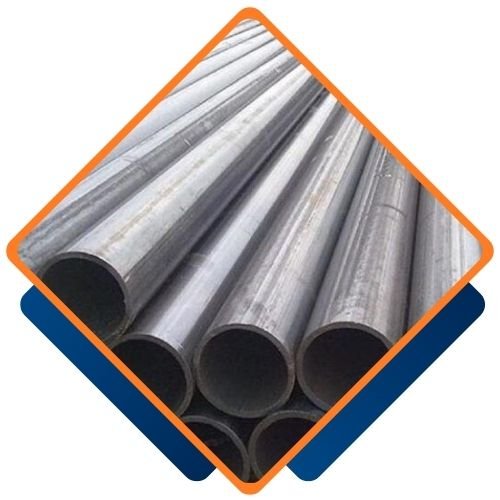

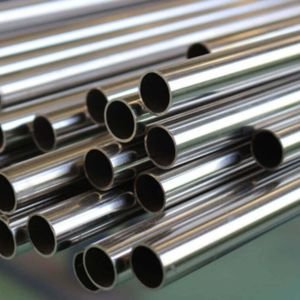

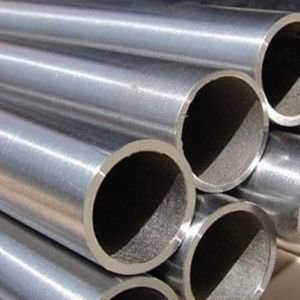

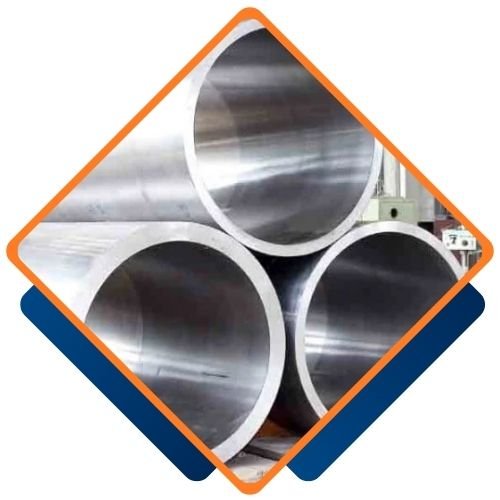

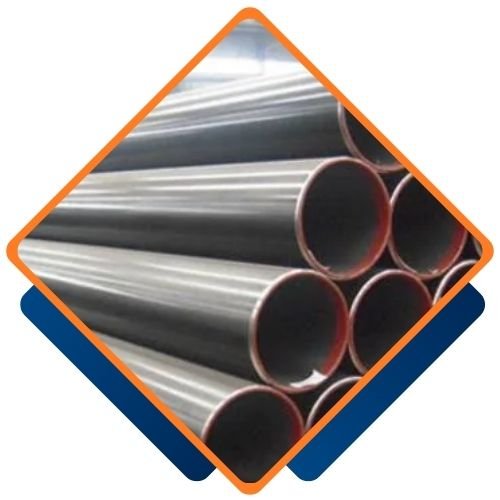

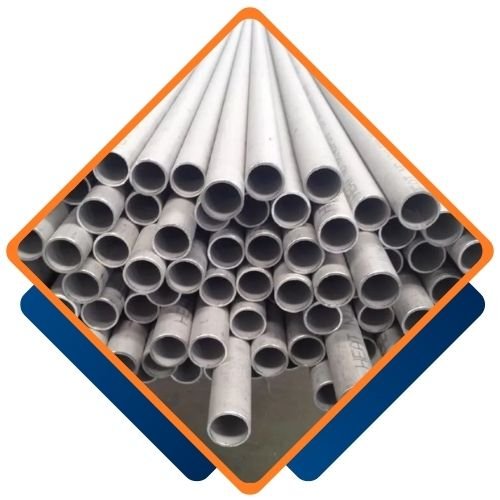

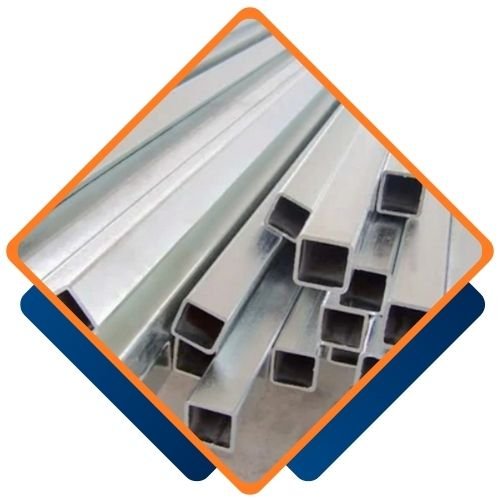

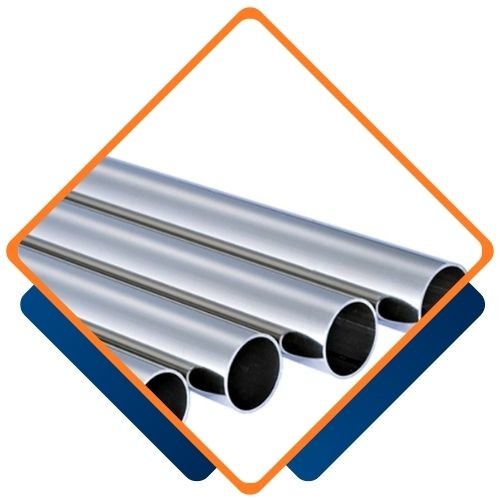

Types of Stainless Steel 347H Pipes

Are Custom Sizes Available for Stainless Steel 347H Pipes?

Yes, we offer custom sizes for Stainless Steel 347H Pipes to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.

SS UNS S34709 Pipes Exporters in Bandung, ASME SA 312 TP347H Pipes Surabaya , SUS 347H Pipes Distributor in Indonesia, 347H SS Pipes Price Per Kg, 347H Austenitic Stainless Steel Pipe Supplier in Indonesia, SS 347H Pipe Stockist in Bekasi, Stainless Steel 347H Pipes Dealer in Surabaya

Stainless Steel 347H Pipes find extensive use in high-temperature and high-pressure settings, especially within the petrochemical, refinery, and power generation industries. These pipes are perfect for heat exchangers, boiler tubes, superheaters, and furnace components, where resistance to thermal fatigue and oxidation is vital. They also serve in chemical processing equipment, piping systems, and steam service lines due to their stability at elevated temperatures. In the aerospace and marine industries, 347H pipes are trusted for their reliability and performance, ensuring they meet the rigorous demands of these challenging environments.
