Stainless Steel 904L Pipes Manufacturer, Supplier and Exporter in Indonesia, Jakarta

Bulan Pipes and Tubes in Jakarta, Indonesia, is a reliable manufacturer and supplier of 904L Stainless Steel Pipes, offering high-quality piping products for highly corrosive and aggressive conditions. Specialists in high-alloy stainless steels, Bulan provides SS 904L pipes conforming to international quality standards and are employed in critical industries including chemical processing, marine, pharmaceutical, and pulp & paper. By virtue of exceptional product quality, accurate fabrication, and customer-centricity, Bulan has emerged as an erstwhile supplier for corrosion-resistant stainless steel piping in Indonesia and international markets.

904L Stainless Steel Pipes Exporter in Jakarta, SS UNS N08904 Pipes Supplier in Indonesia, 904L Stainless Steel Pipe Manufacturer in Surabaya, SUS 904L Pipes Price List in Bekasi, ASTM A312 Stainless Steel 904L Pipe Distributor in Surabaya, Stainless Steel 1.4539 Pipes in Bandung, Stainless Steel TP904L Pipe Exporters in Jakarta

Stainless Steel 904L Pipes are fabricated from a low-carbon, high-alloy austenitic stainless steel with around 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and trace amounts of copper (1–2%). This alloy has very good resistance to crevice corrosion, pitting, and stress corrosion cracking, particularly in acidic and chloride-containing environments. Mechanical properties are a yield strength of approximately 220 MPa and a tensile strength of 490–740 MPa. SS 904L has good formability, weldability, and long-lasting performance in corrosive conditions and is thus well-tailored for both structural and pressure-bearing applications.

Stainless Steel 904L Pipes Specification

Pipe Standard	ASTM A312 ASME SA312 / ASTM A358 ASME SA358
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Stainless Steel Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
Stainless Steel Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

Stainless Steel 904L Pipes Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
904L	min.	–	–	–	–	–	19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

SS 904L Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
904L	490	220	35	70-90 typical	–

Equivalent Grades of Stainless Steel 904L Pipe

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	KS	AFNOR	EN
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TP904L Pipes Surabaya, Stainless Steel 904L Pipes Exporters in Bekasi, 904L Stainless Steel Pipe Manufacturers in Surabaya, SS UNS N08904 Pipes Supplier in Indonesia, SS 904L Schedule 20 Pipe Stockist in in Bandung, SS 904L Pipes Distributor in Jakarta, 904L Stainless Steel Pipes in Indonesia

Why Choose Stainless Steel 904L Pipes from Bulan Pipes and Tubes?

Choosing Stainless Steel 904L Pipes from Bulan Pipes and Tubes ensures the highest quality products and industry standards. Their pipe offers exceptional corrosion resistance and durability, making it ideal for demanding applications. Brydon offers a wide range of sizes and modifications to meet specific project requirements. Focusing on customer service, they ensure on-time delivery and support throughout the buying process. Their competitive pricing and commitment to quality make them a choice in the market. Additionally, Brydon’s expertise in stainless steel components ensures reliable and durable performance.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 904L Pipes Supplier in Indonesia, Jakarta

Bulan Pipes and Tubes, one of the largest suppliers of Stainless Steel 904L Pipes in Indonesia, Jakarta, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 904L Pipe Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

Stainless Steel 904L Pipes Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
904L	8000	200	15.0	–	–	13.0	–	500	850

SS 904L Schedule 40 Pipe Price List in Indonesia, Stainless Steel N08904 Pipes Supplier in Indonesia, SS 904L Pipes Price Per Kg, ASTM A312 Stainless Steel 904L Pipe Exporter in Surabaya, AISI 904L Pipes Stockist in Surabaya, 1 inch SS 904L Pipe Price List in Bandung, SS 904L Pipe Weight Chart, SS 904L Schedule 20 Pipe Thickness, 904L Austenitic Stainless Steel Pipe Manufacturers in Bekasi

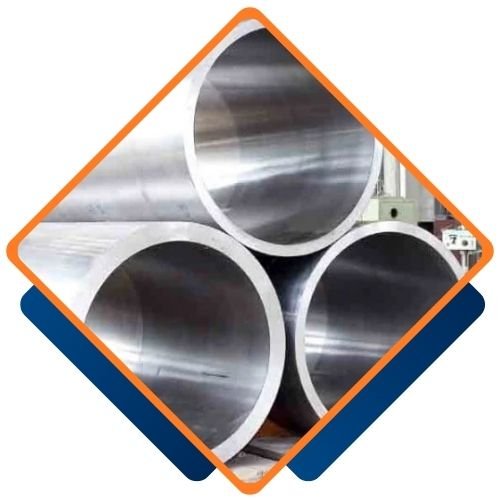

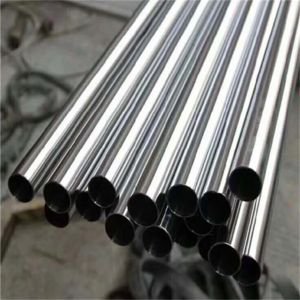

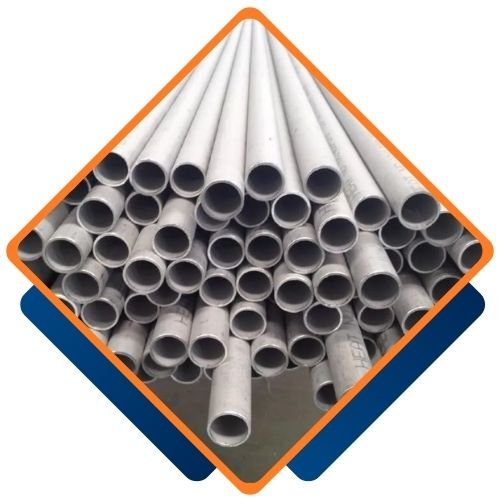

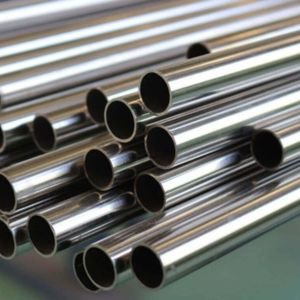

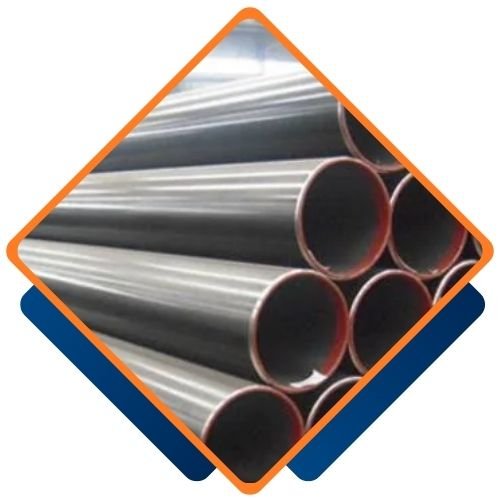

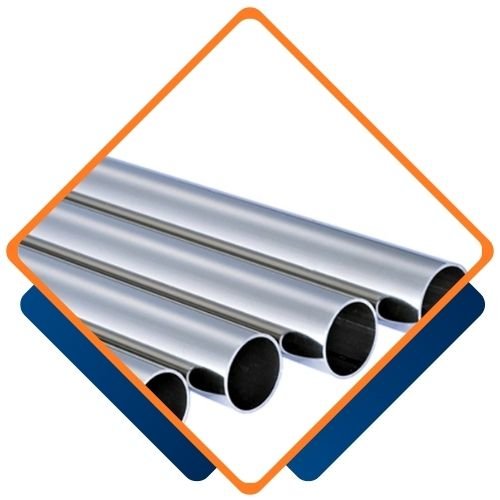

Types of Stainless Steel 904L Pipes

Are Custom Sizes Available for Stainless Steel 904L Pipes?

Yes, we offer custom sizes for Stainless Steel 904L Pipes to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.

SS UNS N08904 Pipes Exporters in Bandung, ASME SA 312 TP904L Pipes Surabaya , SUS 904L Pipes Distributor in Indonesia, 904L SS Pipes Price Per Kg, 904L Austenitic Stainless Steel Pipe Supplier in Indonesia, SS 904L Pipe Stockist in Bekasi, Stainless Steel 904L Pipes Dealer in Surabaya

Stainless Steel 904L Pipe Uses

Stainless Steel 904L Pipes find application in situations demanding superior corrosion resistance and extended service life. In petrochemical and chemical industries, they find application in heat exchangers, reactors, and acid processing equipment. They are employed by the marine industry for seawater handling systems, desalination plants, and offshore platforms because of their resistance to chloride-induced corrosion. Pharmaceutical and food processing industries employ 904L pipes for hygienic, corrosion-resistant fluid transfer. They are also used in pulp and paper, oil and gas, and power generation industries. SS 904L pipes give a cost-effective answer in extremely corrosive conditions where lower grades prematurely fail.
