Home > Stainless Steel > Stainless Steel Condenser Tubing
Bulan Pipes and Tubes is a renowned manufacturer and supplier of Stainless Steel Condenser Tubing in Jakarta, Indonesia. Our condenser tubing is designed for excellent thermal conductivity, corrosion resistance, and structural strength, and thus suitable for heat transfer applications. Produced using premium stainless steel grades such as 304, 316, and 904L, these tubes operate successfully at high pressure and thermal stress. Bulan exports condenser tubing for power plants, desalination systems, HVAC equipment, and petrochemical refineries. Manufactured as per international specifications like ASTM A249 and ASTM A213, our tubing provides leak-free operation and longer life in demanding applications.
304, 316L, or 904L stainless steel is commonly used to produce Stainless Steel Condenser Tubing. These grades have 18–25% chromium, 8–20% nickel, with an optional molybdenum content (up to 4.5%) for increased corrosion resistance. The tubing has tensile strength between 485 MPa and 600 MPa, yield strength of about 170–250 MPa. The mechanical properties are maintained even under high temperature and pressure conditions. There is smooth inner surface that allows for efficient fluid flow and heat transfer. Corrosion–resistance, particularly in seawater and acidic environments, renders it well suited for condenser and evaporator systems in hostile service conditions.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |

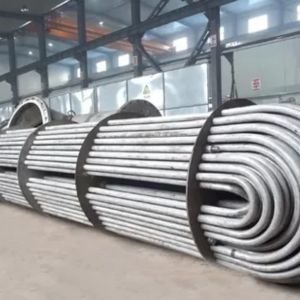

| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |
| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

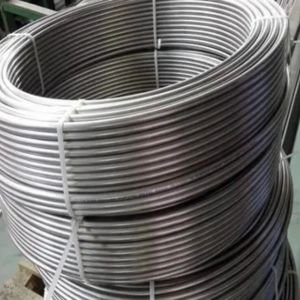

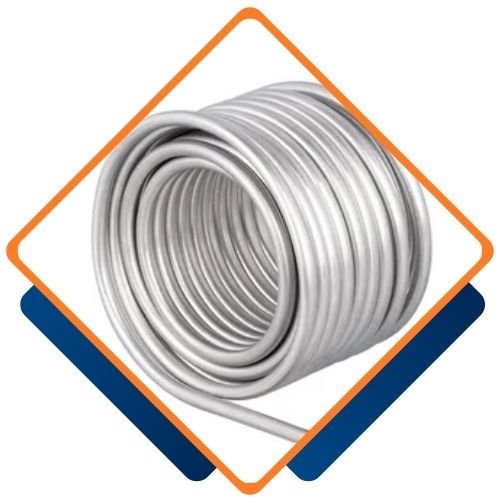

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Bulan Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Bulan Pipes and Tubes, one of the largest suppliers of Stainless Steel Condenser Tubing in Indonesia, Jakarta, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Bulan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bulanpipes.id.

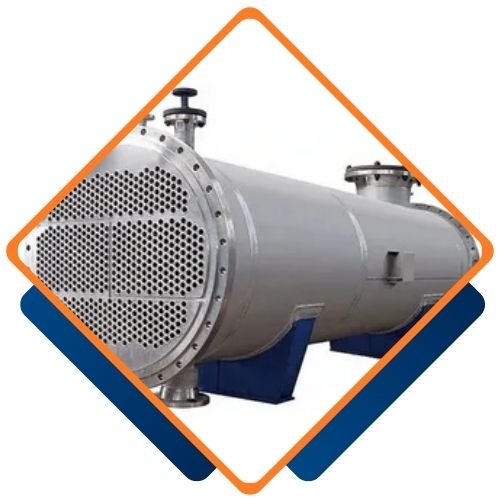

Stainless Steel Condenser Tubing is extensively employed in steam condensers, evaporators, chillers, desalination plants, and marine heat exchangers. Its corrosion-resistance and scaling-resistance in salty or acidic environments make it a good application for power plants, shipbuilding, and chemical processing plants. It provides effective heat transfer in HVAC systems, refineries, and nuclear power plants. It finds applications in food and pharmaceutical industries in hygienic condensers as well as temperature control equipment. Due to the high reliability and long lifespan of the tubing under varying temperature and pressure, it finds application in thermal energy recovery and fluid condensation processes in industrial as well as commercial processes.
