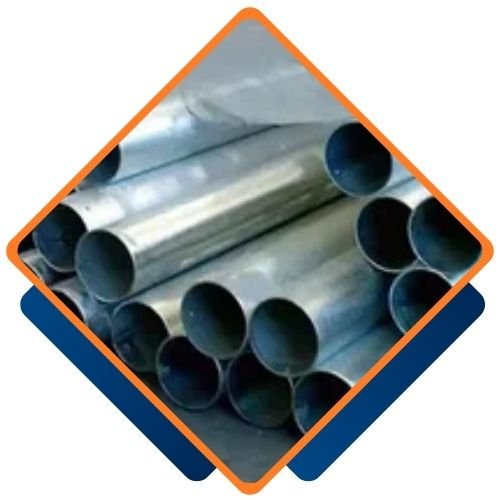

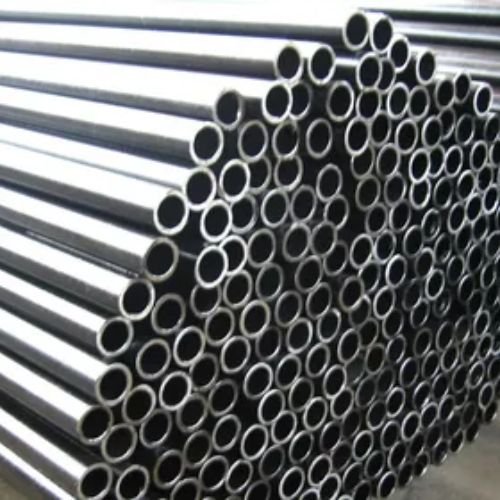

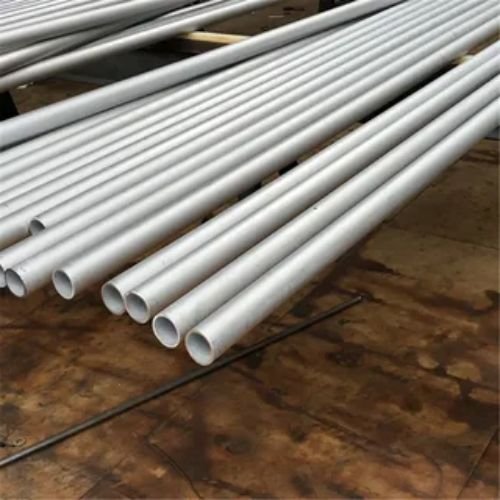

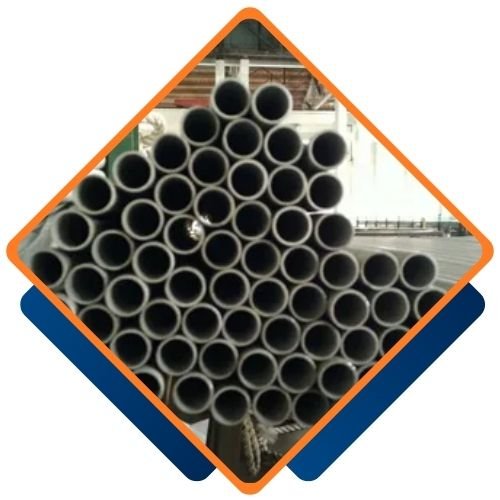

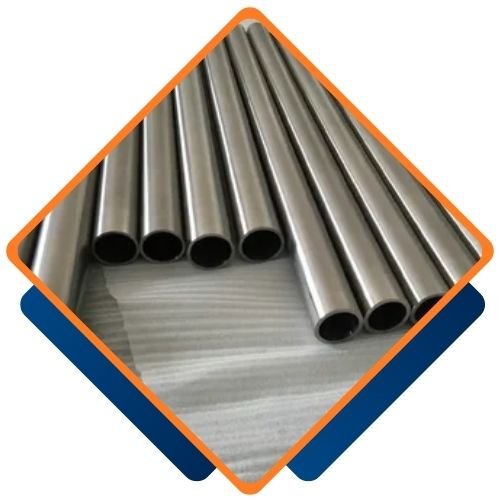

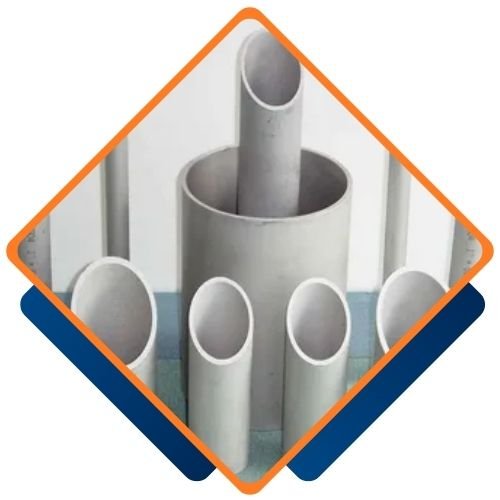

Bulan Pipes and Tubes, located in Jakarta, Indonesia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Titanium Seamless Tubing. This tubing is celebrated for its precision, resistance to corrosion, and impressive durability. The company specializes in providing customized tubing solutions for industries that require strength, lightweight materials, and longevity. By employing cutting-edge production methods and rigorous quality control, Bulan guarantees that every titanium seamless tube adheres to international engineering standards. Their products find applications in various sectors, including aerospace, marine, chemical processing, and medical fields, establishing Bulan Pipes and Tubes as a dependable source for critical and high-performance titanium tubular products around the globe.
When it comes to Titanium Seamless Tubing, it’s crafted from high-purity titanium grades like Grade 2 (commercially pure) and Grade 5 (Ti-6Al-4V). These grades are known for their exceptional corrosion resistance, low density (about 4.5 g/cm³), and impressive tensile strength, ranging from 344 MPa for Grade 2 to 895 MPa for Grade 5. The tubing also boasts excellent fatigue resistance, an elongation of up to 20%, and hardness levels between 160 and 349 HB. Its seamless design ensures consistency, leak-free operation, and enhanced structural integrity, making it perfect for high-pressure and precision applications.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

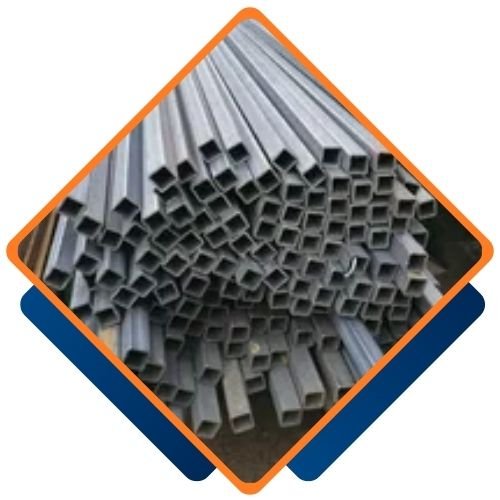

| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Seamless Tubing from Bulan Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Bulan Pipes and Tubes, a leading supplier of Titanium Seamless Tubing in Indonesia, Jakarta, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Bulan Pipes and Tubes, we provide custom sizes of Titanium Seamless Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Titanium Seamless Tubing is utilized across a wide range of industries due to its remarkable mechanical and chemical properties. In aerospace, it’s used in hydraulic systems, fuel lines, and airframe components, thanks to its lightweight and robust nature. In the chemical and petrochemical sectors, it’s ideal for transporting aggressive fluids and gases. In the medical field, it’s employed in surgical instruments and implants due to its biocompatibility. Additionally, it plays a vital role in offshore and marine engineering, power generation, and automotive performance parts, where corrosion resistance and strength under stress are crucial.
